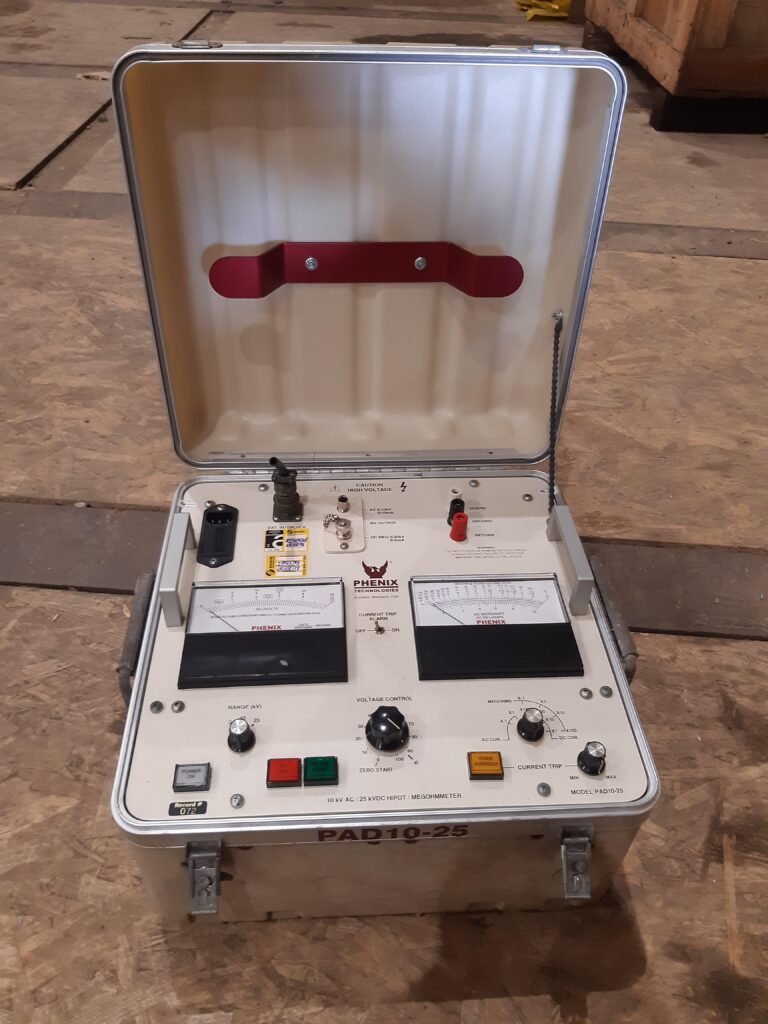

ACDC Hipot Tester and Megohmmeter - Phenix Technologies

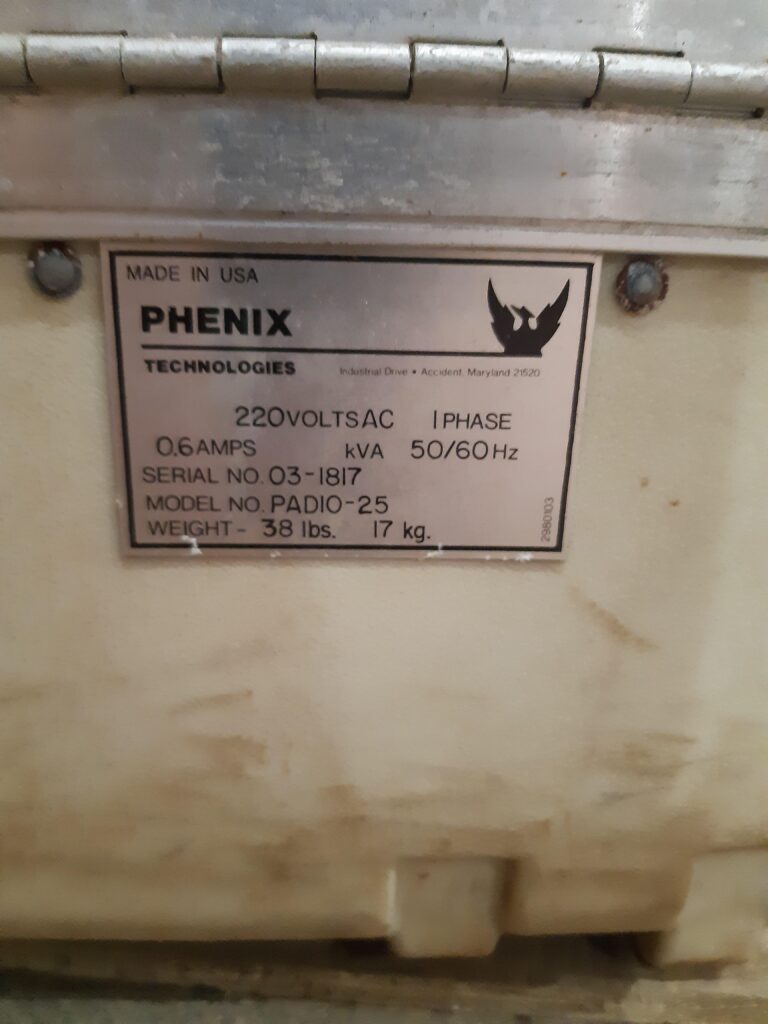

Manufacturer: Phenix Technologies
Model: PAD10-25

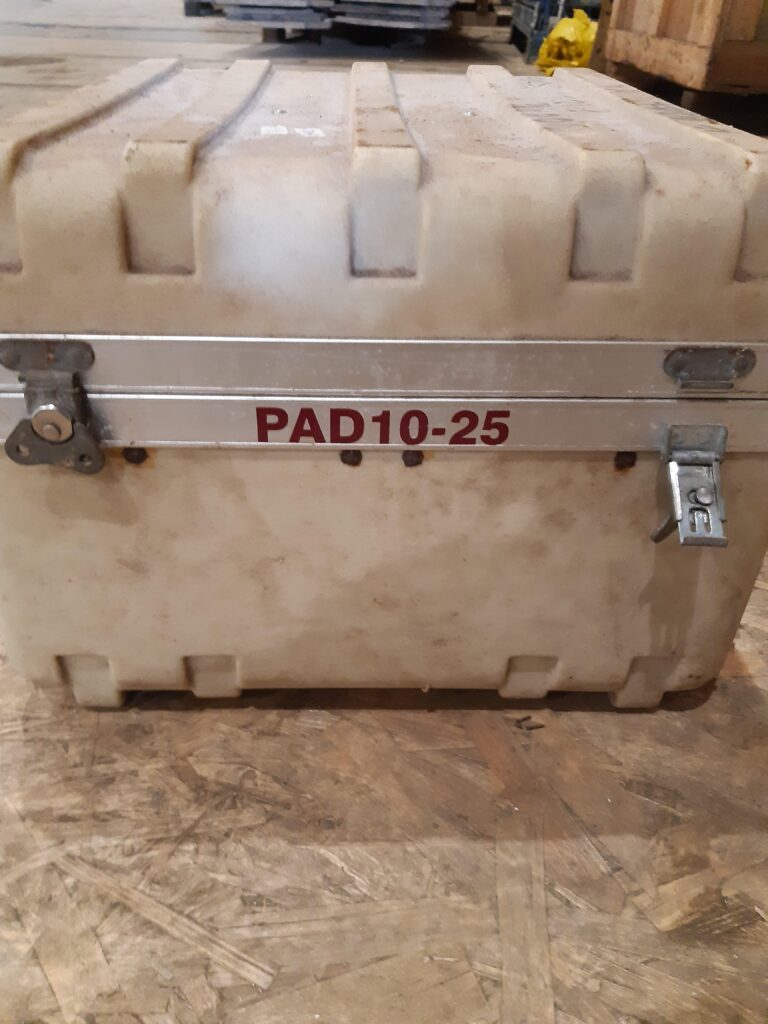

Description: Core FunctionsDual Tester: Combines a High-Potential (Hipot) tester and a Megohmmeter in one unit.Primary Use: Tests insulation quality and dielectric strength in cables, motors, and transformers.📊 Technical OutputsAC Output: 0 to 10 kV AC (Max 10 mA).DC Output: 0 to 25 kV DC (Max 5 mA).Insulation Resistance: Measures up to 150,000 MΩ.4 Test Voltages: Calibrated for 0.5 kV, 2.5 kV, 5 kV, and 15 kV DC.Leakage Current Range: Tracks small currents from 0 to 5,000 µA DC.🛡️ Safety & BuildZero-Start Interlock: High voltage cannot start unless the dial is at zero.Adjustable Current Trip: Instantly cuts power if leakage limits are exceeded.Surge Protection: Protects internal components against sudden flashovers.Field Enclosure: Housed in a rugged, portable case weighing 18.1 kg (40 lbs).
Condition: Used
Stock: 1
External ID: 3984920
Internal ID: 12605
Category: Electrical Equipment
Dimension (L x B x H) [m]: 0,38x0,42x0,29
Weight [kg]: 18
