Pneumatisk Aktuator - Prisma
Manufacturer: Prisma
Model: Prisma PP10S

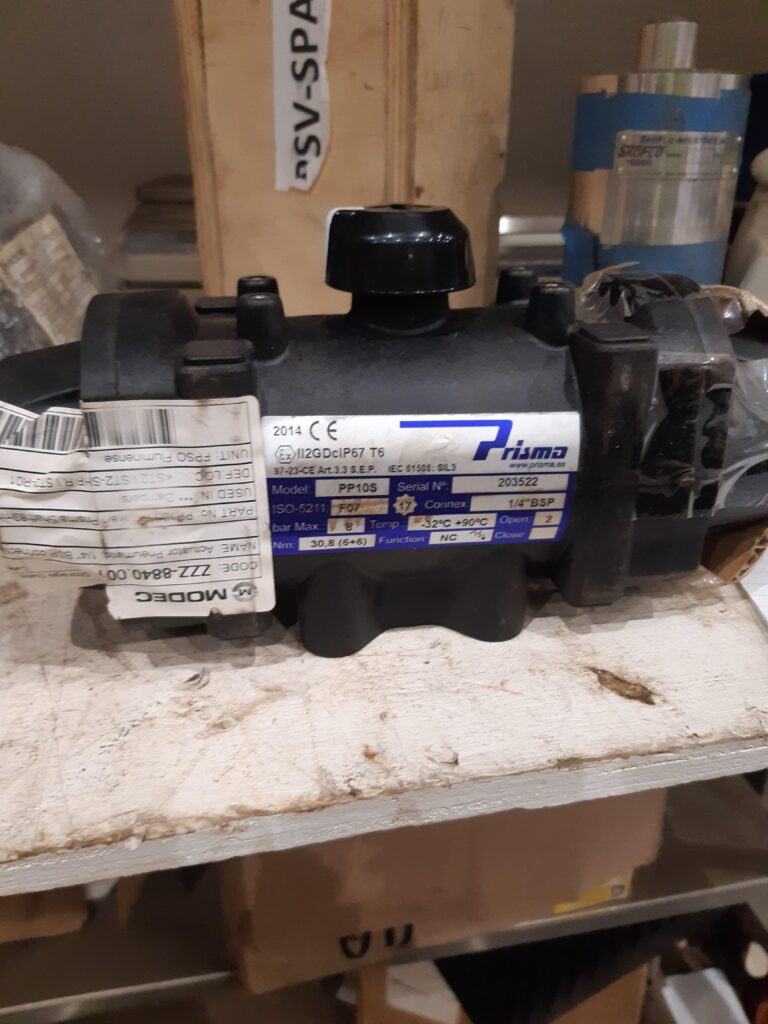

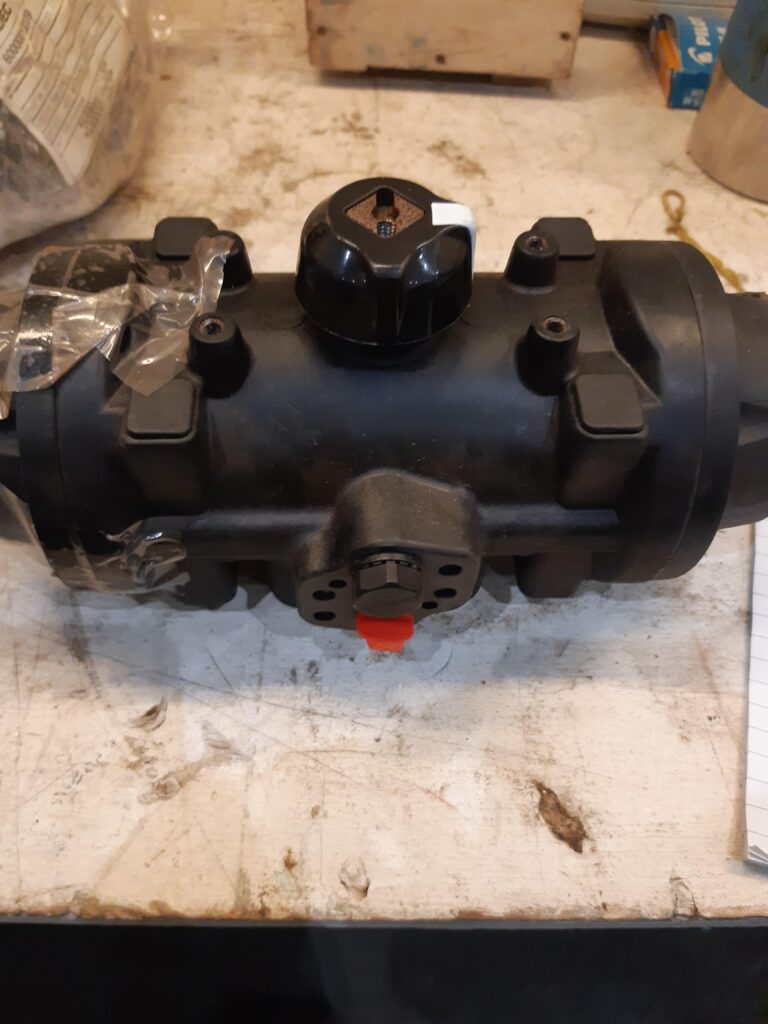

Description: The Prisma PP10S is a single-acting pneumatic spring-return actuator manufactured by Mecanica Prisma, S.L. in Spain, featuring a corrosion-resistant glass-filled polyamide plastic housing, a standard 90-degree rotation angle designed for ball and butterfly valves, a normally closed configuration with a closing torque of approximately 30.8 Nm, a maximum operating pressure of 8 bar, an operational temperature range of -32°C to +90°C, an ISO 5211 F07 mounting interface with a 1/4" BSP air connection following NAMUR standards, ATEX Zone 1 & 2 certification for hazardous locations, and a functional safety rating of SIL 3
Stock: 1
External ID: 4006471
Internal ID: 12620
Dimension (L x B x H) [m]: 0,23x0,17x0,97
Weight [kg]: 2
